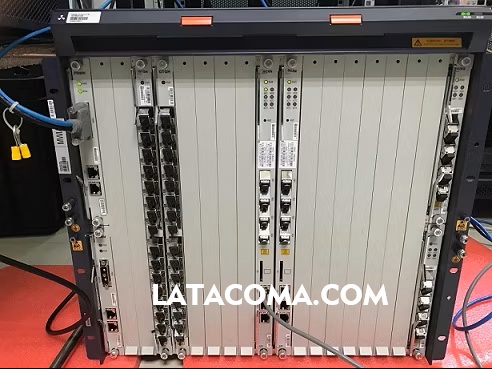

Todos los Comandos de la OLT C300 y C320

ZXAN# -- GESTIÓN OUTBAND
ZXAN# interface mng1
ZXAN(config-if)# ip address 192.168.99.2 255.255.255.0

ZXAN# -- GESTIÓN INBAND
ZXAN# vlan 4000
ZXAN(config-vlan)# exit
ZXAN# interface vlan 4000
ZXAN(config-if)# ip address 192.168.99.2 255.255.255.0
ZXAN(config-if)# ip route 0.0.0.0 0.0.0.0 192.168.99.1

ZXAN# -- CONFIGURANDO CHASIS Y TARJETAS
ZXAN# add-rack rackno 1 racktype IEC19
ZXAN# add-shelf rackno 1 shelfno 1 shelftype IEC_SHELF
ZXAN# add-card rackno 1 shelfno 1 slotno 2 GTGH
ZXAN# add-card rackno 1 shelfno 1 slotno 3 GTGH
ZXAN# add-card rackno 1 shelfno 1 slotno 19 HUVQ
ZXAN# add-card rackno 1 shelfno 1 slotno 20 HUVQ
ZXAN# -- OBS: Para OLT C320
ZXAN# add-subcard slotno 3 subcardno 1 UCDC/3

ZXAN# -- VERIFICAR TARJETAS
ZXAN# show card

ZXAN# -- VERIFICAR VERSIONES DE FIRMWARE EN LAS TARJETAS
ZXAN# show version-running

ZXAN# -- CREANDO USUARIOS DE ACCESO A LA CLI
ZXAN# username teste password 0 Teste123 privilege 15

ZXAN# -- HABILITAR SSH
ZXAN# ssh server enable

ZXAN# -- HABILITANDO CIFRADO DE LAS CONTRASEÑAS
ZXAN# service password-encryption

ZXAN# -- CONFIGURANDO FECHA Y HORA
ZXAN# clock timezone utc -3
ZXAN# clock set 22:01:45 nov 4 2017
ZXAN# show clock

ZXAN# -- CAMBIANDO HOSTNAME
ZXAN# hostname OLT_001

ZXAN# -- CREANDO VLANs DE SERVICIO
ZXAN# vlan 100

ZXAN# -- AGREGADO DE VLANS DE SERVICIO EN PUERTAS UPLINK
ZXAN# interface xgei_1/19/1
ZXAN(config-if)# no shutdown
ZXAN(config-if)# switchport mode trunk
ZXAN(config-if)# switchport vlan 100 tag

ZXAN# -- VERIFICANDO ONUs NO AUTORIZADAS
ZXAN# show gpon onu uncfg

ZXAN# -- HABILITANDO INTERFAZ PON
ZXAN# interface gpon-olt_1/2/1
ZXAN(gpon-olt-1/2/1)# no shutdown

ZXAN(gpon-olt-1/2/1)# -- AUTORIZANDO ONUs
ZXAN(gpon-olt-1/2/1)# onu 1 type ZTE-F643 sn ZTEGC65152F5

ZXAN# -- VERIFICANDO ONUs AUTORIZADAS
ZXAN# show gpon onu state

ZXAN(gpon-olt-1/2/1)# -- REMOVER ONUs AUTORIZADAS
ZXAN(gpon-olt-1/2/1)# no onu 1

ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# disable -- BLOQUEAR ONU AUTORIZADA
ZXAN(gpon-onu-1/2/1:1)# enable -- DESBLOQUEAR ONU AUTORIZADA

ZXAN# -- CREANDO PERFILES DE VLANs (PPPoE/DHCP/STATIC/VoIP)
ZXAN# gpon
ZXAN(config-gpon)# onu profile vlan PPPoE tag-mode tag cvlan 100
ZXAN(config-gpon)# onu profile vlan DHCP tag-mode tag cvlan 101
ZXAN(config-gpon)# onu profile vlan STATIC tag-mode tag cvlan 102
ZXAN(config-gpon)# onu profile vlan VoIP tag-mode tag cvlan 200

ZXAN# -- CREANDO PERFILES IP
ZXAN# gpon
ZXAN(config-gpon)# onu profile ip STATIC gateway 192.168.7.1 primary-dns 192.168.7.1

ZXAN# -- CREANDO PERFILES DE T-CONT (UPSTREAM)
ZXAN# gpon
ZXAN(config-gpon)# profile tcont 20M type 4 maximum 20480
ZXAN(config-gpon)# profile tcont VoIP type 1 fixed 128

ZXAN# -- CREANDO PERFILES DE TRÁFICO (DOWNSTREAM)
ZXAN# traffic-profile 20M ip cir 20480 cbs 100 pir 20480 pbs 100 discard-mode lowPriorityFirst color-mode blind

ZXAN# -- CONFIGURANDO ONUs EN MODO BRIDGE UNTAG
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name BRIDGE profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 user-vlan 100 vlan 100
ZXAN(gpon-onu-1/2/1:1)# traffic-profile 20M vport 1 direction ingress
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 vlan 100
ZXAN(gpon-onu-mng)# vlan port eth_0/1 mode tag vlan 100

ZXAN# -- CONFIGURANDO ONUs EN MODO BRIDGE TAG
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name BRIDGE profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 user-vlan 100 vlan 100
ZXAN(gpon-onu-1/2/1:1)# service-port 2 vport 1 user-vlan 101 vlan 101
ZXAN(gpon-onu-1/2/1:1)# traffic-profile 20M vport 1 direction ingress
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 vlan 100
ZXAN(gpon-onu-mng)# service 2 gemport 1 vlan 101
ZXAN(gpon-onu-mng)# vlan port eth_0/1 mode transparente

ZXAN# -- CONFIGURANDO ONUs EN MODO ROUTER (PPPoE)
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name INTERNET profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 user-vlan 100 vlan 100
ZXAN(gpon-onu-1/2/1:1)# traffic-profile 20M vport 1 direction ingress
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 vlan 100
ZXAN(gpon-onu-mng)# wan-ip 1 mode pppoe username teste password Teste123 vlan-profile PPPoE host 1
ZXAN(gpon-onu-mng)# reboot

ZXAN# -- CONFIGURANDO ONUs EN MODO ROUTER (DHCP)
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name INTERNET profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 user-vlan 100 vlan 100
ZXAN(gpon-onu-1/2/1:1)# traffic-profile 20M vport 1 direction ingress
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 vlan 100
ZXAN(gpon-onu-mng)# wan-ip 1 mode dhcp vlan-profile DHCP host 1
ZXAN(gpon-onu-mng)# reboot

ZXAN# -- CONFIGURANDO ONUs EN MODO IP ESTÁTICO (STATIC)
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name INTERNET profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 user-vlan 100 vlan 100
ZXAN(gpon-onu-1/2/1:1)# traffic-profile 20M vport 1 direction ingress
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 vlan 100
ZXAN(gpon-onu-mng)# wan-ip 1 mode static ip-profile STATIC ip-address 192.168.7.2 mask 255.255.255.0 vlan-profile STATIC host 1
ZXAN(gpon-onu-mng)# reboot

ZXAN# -- CONFIGURANDO SERVICIO DE VOZ (VoIP / SIP)
ZXAN# gpon
ZXAN(config-gpon)# onu profile sip VoIP proxy 192.168.99.1:5060 registrar 192.168.99.1:5060
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 2 name VOIP profile VoIP
ZXAN(gpon-onu-1/2/1:1)# gemport 2 tcont 2
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 2
ZXAN(gpon-onu-1/2/1:1)# service-port 2 vport 2 user-vlan 200 vlan 200
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service voip gemport 2 vlan 200
ZXAN(gpon-onu-mng)# voip-ip mode dhcp vlan-profile VoIP host 2
ZXAN(gpon-onu-mng)# voip protocol sip
ZXAN(gpon-onu-mng)# sip-service pots_0/1 profile VoIP userid 1001 username 1001 password 1001

ZXAN# -- CONFIGURANDO SERVICIO DE IPTV (MULTICAST)
ZXAN# igmp enable
ZXAN# igmp mvlan 102
ZXAN# igmp mvlan 102 work-mode proxy
ZXAN# igmp mvlan 102 group 224.1.1.1 to 224.1.1.3
ZXAN# igmp mvlan 102 source-port gei_1/20/1
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 3 name IPTV profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 3 tcont 3
ZXAN(gpon-onu-1/2/1:1)# service-port 3 vport 3 user-vlan 102 vlan 102
ZXAN(gpon-onu-1/2/1:1)# igmp fast-leave enable vport 3
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# igmp mvlan 102 receive-port gpon-onu_1/2/1:1 vport 3
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng 1/2/1:1)# service multicast gemport 3 cos 5 vlan 102
ZXAN(gpon-onu-mng 1/2/1:1)# mvlan 102
ZXAN(gpon-onu-mng 1/2/1:1)# mvlan tag eth_0/4 strip
ZXAN(gpon-onu-mng 1/2/1:1)# vlan port eth_0/4 mode tag vlan 102 pri 5
ZXAN(gpon-onu-mng 1/2/1:1)# end

ZXAN# -- CONFIGURANDO ONUs EN MODO BRIDGE (QinQ)
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(gpon-onu-1/2/1:1)# tcont 1 name BRIDGE profile 20M
ZXAN(gpon-onu-1/2/1:1)# gemport 1 tcont 1
ZXAN(gpon-onu-1/2/1:1)# switchport mode hybrid vport 1
ZXAN(gpon-onu-1/2/1:1)# service-port 1 vport 1 other-all tls-vlan 100
ZXAN(gpon-onu-1/2/1:1)# exit
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# service 1 gemport 1 ethuni eth_0/1
ZXAN(gpon-onu-mng)# vlan port eth_0/1 mode transparente

ZXAN# -- CONFIGURANDO SNMP PARA USO DO NETNUMEN
ZXAN# snmp-server community private view all rw
ZXAN# snmp-server community public view all ro
ZXAN# snmp-server view allview org included
ZXAN# snmp-server view DefaultView system included
ZXAN# snmp-server host 192.168.99.1 trap version 2c private enable NOTIFICATIONS serverindex 1 udp-port 162 third-party-server

ZXAN# -- VERIFICANDO SERVICIOS DE INTERNET, VOZ E IPTV
ZXAN# show onu running config gpon-onu_1/2/1:1
ZXAN# show gpon onu detail-info gpon-onu_1/2/1:1
ZXAN# show mac gpon onu gpon-onu_1/2/1:1
ZXAN# show igmp mvlan 300
ZXAN# show igmp mp-forwarding-table
ZXAN# pon-onu-mng gpon-onu_1/2/1:1
ZXAN(gpon-onu-mng)# show service-port interface gpon-onu_1/2/1:1

ZXAN# -- VERIFICANDO INFORMACIONES DE LAS ONUs
ZXAN# show gpon onu detail-info gpon-onu_1/2/1:1
ZXAN# show gpon remote-onu equip gpon-onu_1/2/1:1

ZXAN# -- VERIFICANDO SEÑAL ÓPTICA RX DE LA ONU
ZXAN# show pon power onu-rx gpon-onu_1/2/1

ZXAN# -- VERIFICANDO SEÑAL ÓPTICA TX DE LA ONU
ZXAN# show pon power onu-tx gpon-onu_1/2/1

ZXAN# -- VERIFICANDO SEÑAL ÓPTICA TX DE LA OLT
ZXAN# show pon power olt-tx gpon-olt_1/2/1

ZXAN# -- VERIFICANDO SEÑAL ÓPTICA RX DE LA OLT
ZXAN# show pon power olt-rx gpon-olt_1/2/1:1

ZXAN# -- VERIFICANDO REPORTE DE ATENUACIONES DE LA ONU
ZXAN# show pon power attenuation gpon-onu_1/2/1:1

ZXAN# -- VERIFICANDO DISTANCIA FÍSICA ENTRE OLT Y ONU
ZXAN# show gpon onu distance gpon-onu_1/2/1:1

ZXAN# -- VERIFICANDO TABLA MAC
ZXAN# show mac

ZXAN# -- VERIFICANDO ALARMAS
ZXAN# show alarm pool

ZXAN# -- VERIFICANDO LÍMITES DE ALARMAS ÓPTICAS DE LA ONU
ZXAN# show pon transceiver-thresh gpon-onu_1/2/1:1

ZXAN(config-pon)# -- CONFIGURANDO LÍMITES DE ALARMAS ÓPTICAS
ZXAN(config-pon)# transceiver-thresh rx-power gpon-onu_1/2/1:1 upper-alarm -5 upper-warning -10 lower-warning -15 lower-alarm -20

ZXAN(config-if)# -- VERIFICANDO MÓDULOS ÓPTICOS DE LA OLT
ZXAN(config-if)# show interface optical-module-info gpon-olt_1/2/1

ZXAN# -- ACTUALIZANDO ONUs
ZXAN# interface mng1
ZXAN(config-if)# boot-server 192.168.99.1
ZXAN(config-if)# boot-username gpon
ZXAN(config-if)# boot-password gpon
ZXAN# cpe update-and-reboot f62xp2t4.bin gpon-olt_1/2/1 1
ZXAN# cpe update-and-reboot f62xp2t4.bin type ZTE-F660
ZXAN# show cpe update-status gpon-olt_1/2/1 1
ZXAN# show cpe information gpon-olt_1/2/1 1

ZXAN# -- ACTUALIZANDO LA OLT
ZXAN# interface mng1
ZXAN(config-if)# ip 192.168.99.10
ZXAN(config-if)# boot-server 192.168.99.1
ZXAN(config-if)# boot-username gpon
ZXAN(config-if)# boot-password gpon
ZXAN# write
ZXAN# reboot
//stop boot
p
c
//reboot
ZXAN# file download version scxn.fw
ZXAN# file download version scxn_lx.mvr
ZXAN# file download version scxn.bt
ZXAN# show version-saved master
ZXAN# show card
ZXAN# show version-running
ZXAN# update-boot slotno 10
ZXAN# reboot
ZXAN# show version-running
ZXAN# show updatecpld
ZXAN# update-cpld slotno 10 swtval 1
ZXAN# show updatecpld

ZXAN# -- REINICIANDO UN SLOT (CARD)
ZXAN# reset-card slotno 4

ZXAN# -- HABILITANDO AUTO-WRITE
ZXAN# show auto-write
ZXAN# auto-write enable
ZXAN# auto-write 03:00:00 nov 1 2017

ZXAN# -- DEFINIR TIEMPO DE LOGOUT AUTOMÁTICO DE LA CLI
ZXAN# line telnet idle-timeout 1000

ZXAN# -- HABILITANDO AUTORIZACIÓN AUTOMÁTICA DE ONUs
ZXAN# interface gpon_olt-1/3/1
ZXAN(config-if)# auto-learning enable

ZXAN# -- VERIFICANDO FUENTE DE ALIMENTACIÓN DE LA OLT
ZXAN# show power

ZXAN# -- VERIFICANDO CONFIGURACIONES EN LA RUNNING-CONFIG
ZXAN# show running-config

ZXAN# -- GUARDANDO LAS CONFIGURACIONES EN FLASH
ZXAN# write

ZXAN# -- LIMPIANDO CONFIGURACIONES DE UNA ONU
ZXAN# pon
ZXAN(config-pon)# clear onu gpon-onu_1/2/1:1

ZXAN# -- CAMBIAR ENTRE CARDS DE CONTROL
ZXAN# swap

ZXAN# -- BACKUP DE LA OLT
ZXAN# config file-server auto-backup all server-index 1 ftp ipaddress 192.168.99.1 path bak user zte password zte
ZXAN# config auto-backup condition cfg-changed hold-off-time 1 max-hold-off-time 2
ZXAN# file-server manual-backup cfg server-index 1 ftp ipaddress 192.168.99.2 user zte password zte
ZXAN# manual-backup all
ZXAN# show file-server auto-backup

ZXAN# -- VERIFICAR ARCHIVOS DE LA OLT
ZXAN# show file cfg

ZXAN# -- DOWNLOAD DE ARCHIVOS DE LA OLT
ZXAN# download cfg startrun.sav ftp ipaddress 192.168.99.1 user teste password teste

ZXAN# -- VERIFICANDO CPU DE LA OLT
ZXAN# show processor

ZXAN# -- MANIPULANDO WIFI
ZXAN# (gpon-onu-mng 1/1/16:2)# wifi enable channel 11 tx-power-percent 100
ZXAN# (gpon-onu-mng 1/1/16:2)# ssid auth wpa wifi_0/1 wpa2-psk encrypt aes key SenhaWIFI123
ZXAN# (gpon-onu-mng 1/1/16:2)# ssid ctrl wifi_0/1 name NOMESSID

ZXAN# -- CONFIGURANDO OPTION82
ZXAN# dhcp-option82 enable
ZXAN# vlan 200
ZXAN# ip dhcp snooping
ZXAN# port-location access-node-identifier inband-mac
ZXAN# port-location hostname OLT_LAB_001
ZXAN# port-location flexible-syntax enable
ZXAN# interface gpon-onu_1/2/1:1
ZXAN(config-if)# switchport mode hybrid vport 1
ZXAN(config-if)# switchport vlan 200 tag vport 1
ZXAN(config-if)# ip dhcp snooping enable vport 1
ZXAN(config-if)# ip access-group 300 in vport 1
ZXAN(config-if)# dhcp-option82 enable vport 1
ZXAN(config-if)# dhcp-option82 trust true replace vport 1
ZXAN(config-if)# port-location format dsl-forum vport 1
ZXAN(config-if)# port-location sub-option remote-id enable vport 1
ZXAN(config-if)# port-location sub-option remote-id name ZTEGC0A2B93C vport 1

ZXAN# -- HABILITAR PON PROTECTION
ZXAN# pon
ZXAN(config-pon)# clear gpon-olt_1/1/2
ZXAN(config-pon)# protection group zte workpon gpon-olt_1/1/1 protectpon gpon-olt_1/1/2 typeB
ZXAN(config-pon)# protection prop group zte mode revertive wtr 120
ZXAN(config-pon)# protection switch-command group zte force w2p
ZXAN(config-pon)# show protection group information zte

ZXAN# -- HABILITANDO “ROGUE ONU DETECTION”
ZXAN# rogue-onu-detect 1 enable locate enable auto-shutdown enable
ZXAN# show logging alarm | include Rogue ONU

ZXAN# -- ERASE EN LA OLT PARA CONFIGURACIONES DE FÁBRICA
ZXAN# dir cfg
ZXAN# delete cfg startrun.dat
ZXAN# reboot
ZXAN# -- OBS: no usar el comando write o guardar las configuraciones después del delete
